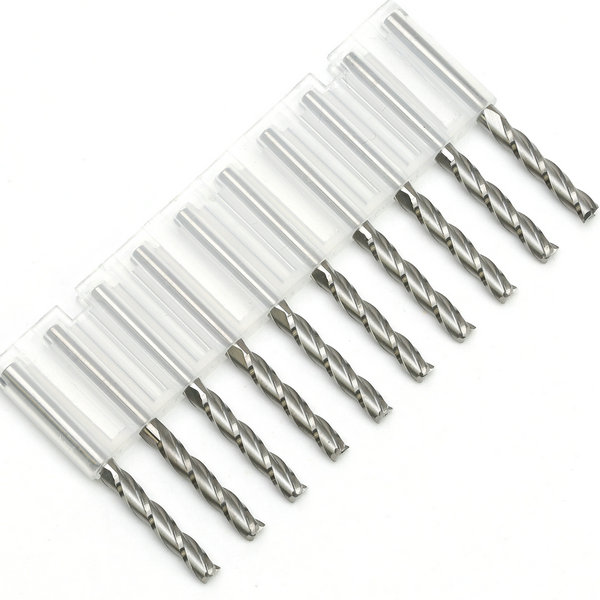

0.125" / 3.175MM Diameter 3 Flute Tools
1. 3 flute tools:
(1) SHANK: 0.125" / 3.175MM;
(2) Suitable for:
Cutting, carving and milling solid wood, MDF, ABS, acrylic, PVC, and so on.
(3) Color: Silver;
(4) Package: 10 Pieces/Lot in one strong box;
(5) We can produce router bits according to your different requirements or provided data.
2. 3 flute tools conventional models (Unit: MM):
|
Model |
SHANK |
Cutting Edge Diameter |
Length of Cut |
Overall Length |
|
NO. |
SHK |
CED |
CEL |
OVL |
|
3LX3-08 |
3.175 |
3.175 |
8 |
38 |
|
3LX3-12 |
3.175 |
3.175 |
12 |
38 |
|
3LX3-17 |
3.175 |
3.175 |
17 |
38 |
|
3LX3-20 |
3.175 |
3.175 |
20 |
45 |
|
3LX3-22 |
3.175 |
3.175 |
22 |
45 |
|
3LX3-25 |
3.175 |
3.175 |
25 |
50 |
|
3LX3-28 |
3.175 |
3.175 |
28 |
55 |
|
3LX3-30 |
3.175 |
3.175 |
30 |
60 |
|
3LX3-32 |
3.175 |
3.175 |
32 |
60 |
|
3LX3-42 |
3.175 |
3.175 |
42 |
70 |
3. In 3 Flute Milling Bits group, you can also buy:
(1) 4MM Diameter Solid End Mill;
(2) 6MM Diameter 3 Flute End Mill;
(3) 8MM Carbide End Mill Cutters;
Besides 3.175MM Shank 3 Flute Tools.
