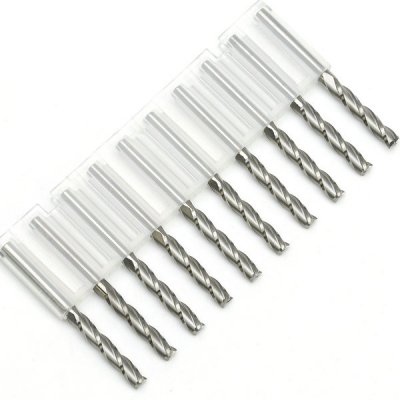

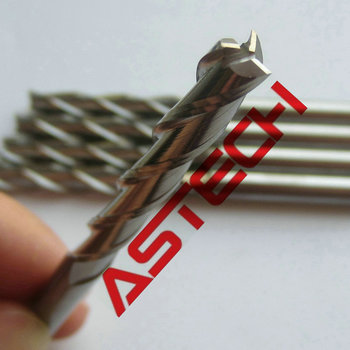

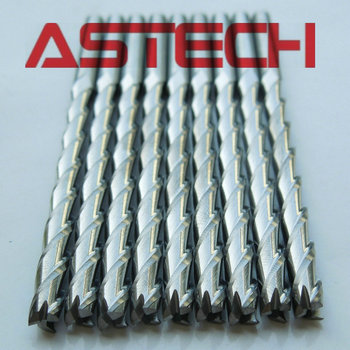

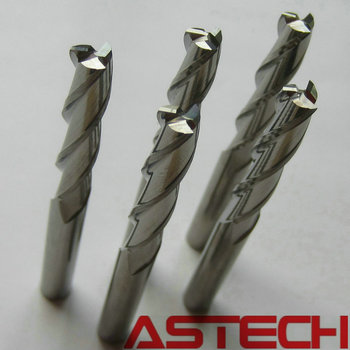

0.16" / 4MM Shank Solid End Mill
1. Solid end mill description:
(1) Brand: ASTECH CNC Tools;
(2) Flute Number: 3;
(3) Shank: 0.16" / 4MM;
(4) Packing: 10 pcs / Lot;
(5) Applied in:
Cutting & engraving woods, MDF, acrylic, abs, PVC, and so on.
(6) Quality guaranteed!
2. Solid end mill standard dimensions or as per your special requirements.
Unit: mm.
|
Model |
Diameter |
CED
Cutting Edge Diameter |
CEL
Cutting Length |
OVL
Overall Length |
|
3LX4-08 |
4 |
4 |
8 |
40 |
|
3LX4-10 |
4 |
4 |
10 |
40 |
|
3LX4-12 |
4 |
4 |
12 |
40 |
|
3LX4-15 |
4 |
4 |
15 |
40 |
|
3LX4-20 |
4 |
4 |
20 |
45 |
|
3LX4-22 |
4 |
4 |
22 |
45 |
|
3LX4-25 |
4 |
4 |
25 |
50 |
|
3LX4-28 |
4 |
4 |
28 |
60 |
|
3LX4-32 |
4 |
4 |
32 |
70 |
|
3LX4-42 |
4 |
4 |
42 |
80 |
3. In 3 flutes Milling Bits Series, you can also find:
(1) 3.175MM 3 Flute Tools;
(2) 6MM 3 Flute End Mill;
(3) Customized 8MM Carbide End Mill Cutters;
Besides 4MM Solid End Mill.
