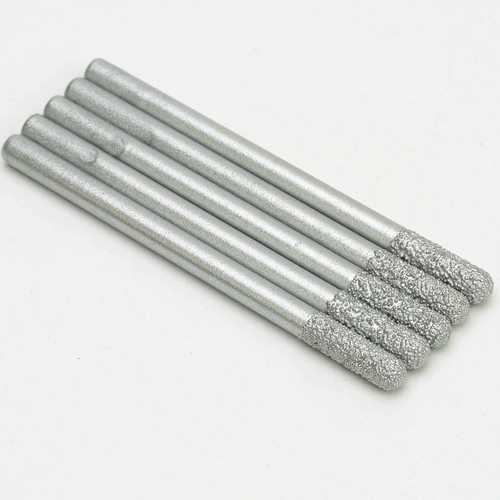

6MM Shank Ball End Long Router Bit
Longer Diamond Length for More Beautiful 3D Relief
Long router bit, with 20mm diamond length,
Can realize more beautiful and deeper 3D relief, U-shaped bottom letters, carving flower patterns in
Granite, marble, calcite, fluorite, tiles, bluestone, gravestone and so on.
1. Specification:
(1) NAME:6MM Shank Ball End Long Router Bit
(2) MODEL: EM6-LBE062090
(3) SHANK: 6MM
(4) CED: 6MM
(5) CEL: 20MM
(6) OVL: 90MM
(7) NET WEIGHT: 28G
(8) PACKING: BOX
2. Machine parameters for reference:
(1) Suggested speed: 20000-24000RPM;
(2) Z_DownFeedrate: 50-100mm/min;
(3) Feed speed: 1000-2000;
(4) The engraving depth every time depends on different stone materials.
For example, granite: 1-3mm, marble: 1-4mm, bluestone: 1-5mm.
(5) While processing, should keep enough water or cooling liquid to cool the router bits.
(6) Always welcome to consult ASTECH Technical Department, for the most professional suggestion!
3. Long router bit features:
(1) The compressive strength is 50 times higher than electroplated grinding head. The durability of long router bit can be comparable to sintered diamond tools!
(2) Tool bit will not distort.
(3) Higher endurance.
(4) Excellent work performance!
4. Besides 6mm Shank Ball End Long Router Bit,
(1) 6mm Shank Ball End Router Bits;
(2) 6mm Diamond Stone Tools;
(3) 6-to-3 Engraver Tool;
(4) 6-to-5 Stone Drilling Tools;
(5) 8mm Shank Ball End Router Bit;
(6) 8mm Shank Ball End CNC Router Cutters (20mm longer process depth);
(7) 8mm Shank Ball End Stone Engraving Tools (35mm longer process depth);
(8) 10mm Diamond Engraving Tool;
(9) 12mm Shank Ball End Router Cutters;
In Ball End Diamond Tools Series,
Maybe also useful to you!
