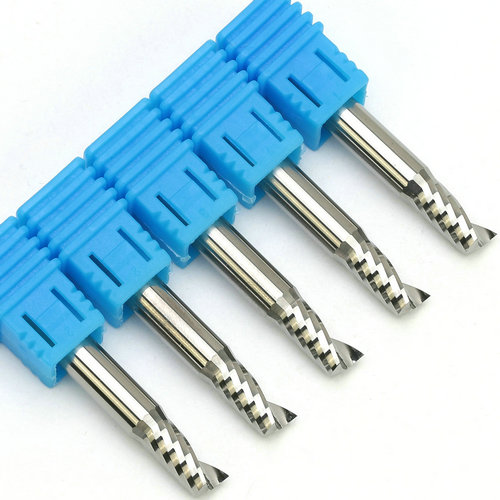

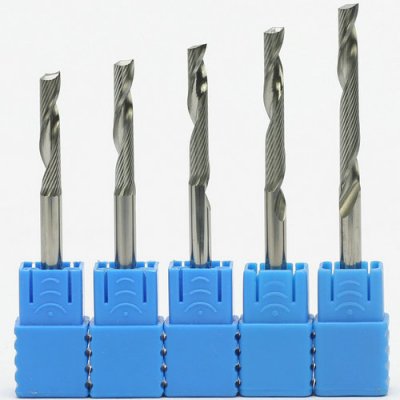

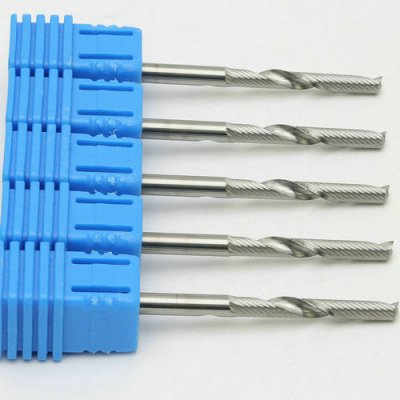

0.24" / 6MM Flute Cutter
1. ASTECH cnc tools types: single flute cutter;
2. Manufactured by quality tungsten steel carbide;
3. Perfect for:
(1) Wood block, MDF;
(2) Organic glass, PVC, resin, plastic;
(3) Metal, copper, and so on;
4. Functional in: 2d cutting, carving, end milling, slotting, etc;
5. Peculiarity of flute cutter:
(1) Unique tool point, extra-large chip space, can easily process acrylic sheet, and improve speed several times; also avoid warping phenomenon because of overheating;
(2) Non-sticking, feeding is bright and clean; fine / delicate cutter grain, no need to scrap again;
(3) Best suited to batch processing;
(4) Customized is also available.
6. Packing specifications: 10 pcs;
7. Parameters (unit: mm):
|
Flute Cutter |
||||
|
Model |
Diameter |
Cutting Diameter |
Flute Length |
Full Length |
|
1LX6-12 |
6 |
6 |
12 |
45 |
|
1LX6-17 |
6 |
6 |
17 |
45 |
|
1LX6-22 |
6 |
6 |
22 |
50 |
|
1LX6-25 |
6 |
6 |
25 |
55 |
|
1LX6-28 |
6 |
6 |
28 |
55 |
|
1LX6-35 |
6 |
6 |
35 |
65 |
|
1LX6-42 |
6 |
6 |
42 |
70 |
|
1LX6-52 |
6 |
6 |
52 |
80 |
|
1LX6-62 |
6 |
6 |
62 |
90 |
|
1LX6-72 |
6 |
6 |
72 |
100 |
8. Other helpful single flute mill for your CNC work:
(1) 0.125" / 3.175mm flute end mill;
(2) 0.125" / 3.175mm flute endmill;
(3) 0.16" / 4mm cnc cutting tool;
(4) 0.32" / 8mm single flute cutters;
Besides 0.24” / 6mm flute cutter.
