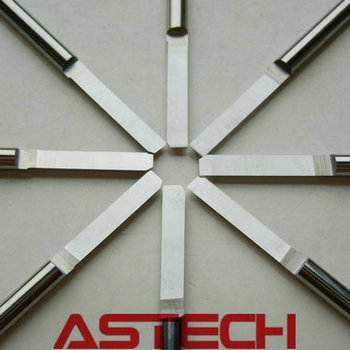

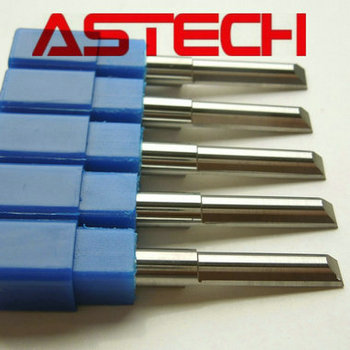

0.125" / 3.175MM Micro Carbide Tool Bits
High Precision & Efficiency
1. Straight carbide tool bits:
(1) Diameter: 0.125" / 3.175mm;
(2) Suitable Materials:
§ PVC, ABS, acryl, plastic, two-color plates;
§ MDF, wood, furong board;
§ Aluminum, copper, titanium, etc.
(3) Major Application: 2D carving & cutting;
(4) Minimum Order Quantity: 10 Pcs;
(5) Package: strong plastic box;
2. Please select different carbide tool bits as below (unit: mm):
Custom-made service is also accepted (Including diamond tools, metal cutters, and other cnc router accessories).
|
Model |
Shank |
CED
Cutting Edge Diameter |
CEL
Cutting Length |
OVL
Overall Length |
|
ZD3-0.803 |
3.175 |
0.8 |
3 |
33 |
|
ZD3-1.003 |
3.175 |
1.0 |
3 |
33 |
|
ZD3-1.206 |
3.175 |
1.2 |
6 |
33 |
|
ZD3-1.508 |
3.175 |
1.5 |
8 |
33 |
|
ZD3-2.006 |
3.175 |
2.0 |
6 |
33 |
|
ZD3-2.512 |
3.175 |
2.5 |
12 |
33 |
3. In straight cutting tool series, you maybe also interested in:
(1) 0.125" / 3.175mm straight cutting bit;
(2) 0.16" / 4mm carbide milling cutter;
(3) 0.24" / 6mm carbide cutting bits;
Besides carbide tool bits.
