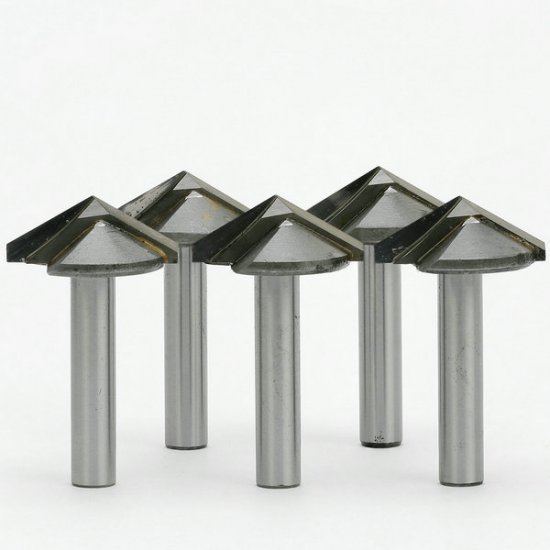

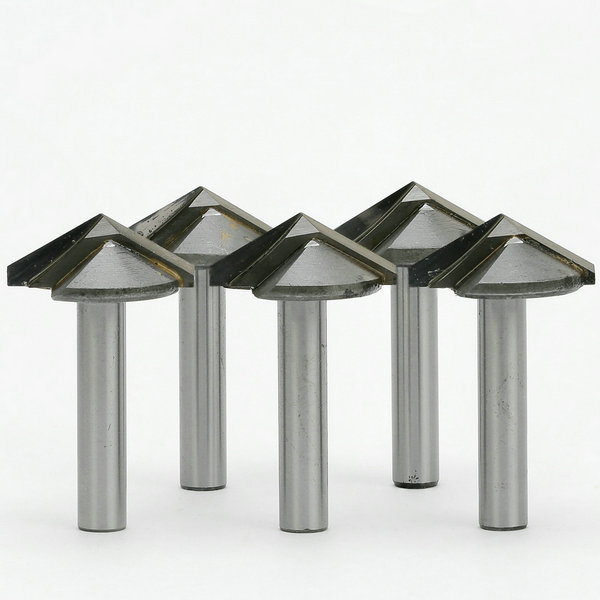

V Groove Router Bits
1. V Groove Router Bits are designed for:
3D engraving, chamfering on acrylic, PVC, MDF, redwood, etc.
2. V Groove Router Bits are featured:
(1) Excellent concentricity: less than 0.05mm;
(2) Non-sticking, good chip removal performance;
(3) Sharp cutting edge, the high precision is without parallel in any other wood router bits.
3. Please kindly select standard models as below:
CED: cutting edge diameter / cutter width;
Unit: MM.
You could mix with different models in a minimum order quantity: 5 pieces.
Just leave us a message or email us.
Our After-Sale Department and Workshop will arrange tools delivery as per your demand!
MODEL |
SHANK |
CED |
Full Angle |
Tool-Tip |
V6-1060/90/120/150 |
6 |
10 |
60° / 90° / 120° / 150° |
0.2 |
V6-1660/90/120/150 |
6 |
16 |
60° / 90° / 120° / 150° |
0.2 |
V6-2260/90/120/150 |
6 |
22 |
60° / 90° / 120° / 150° |
0.2 |
V6-3260/90/120/150 |
6 |
32 |
60° / 90° / 120° / 150° |
0.2 |
V12-3260/90/120/150 |
12.7 |
32 |
60° / 90° / 120° / 150° |
0.2 |
4. In Wood Router Bits Series, you could also find:
(1) Ogee Bit (A, B, C, D);
(3) Needle Nose Ogee Router Bits;
Besides V Groove Router Bits.
