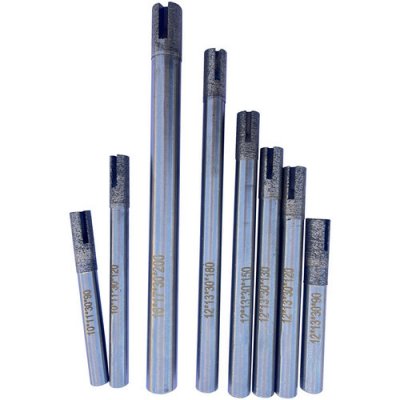

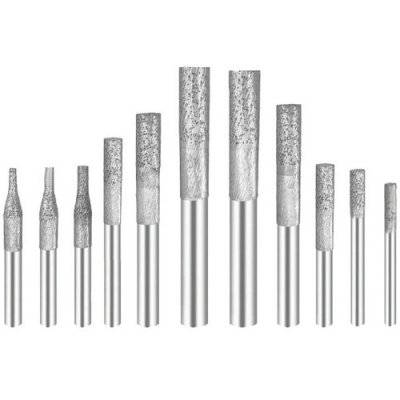

Diamond End Mill
1. Cutting Tool Basic Information:
(1). Cutter Series: Flat-Bottom Sintered Diamond End Mill;
(2). Production Technology:
l Select High-quality& high-density diamond particles and metal powders;
l Production with smelted diamond technology, very sturdy and strong.
(3). Processing Work:
l Good for hard-Granite, also suitable for marble, sandstone, tiles, artificial stones etc.
l For Rough Processing:
Hollowed-out cutting, bottom milling, big-characters engraving, carving, slotting.
2. Milling Cutter Advantages:
(1) Strong bonding forces, good shape retention, well for big load milling cutting machining.
(2) Satisfied smooth clean cutting performance, easy stable processing.
(3) High working efficiency, strength and durability, highly cost-effective.
(4) Have both the sharpness of brazing diamond tool, and also the durability of electroplating diamond bit.
3. End Mill Set Models:
|
STECHTOLNo. |
Shank Diameter |
Head Diameter |
Cutting Length |
Overall Length |
|
D-SINF-0614060 |
6 |
6 |
14 |
60 |
|
D-SINF-0820080 |
8 |
8 |
20 |
80 |
|
D-SINF-0820100 |
8 |
8 |
20 |
100 |
|
D-SINF-1020090 |
10 |
10 |
20 |
90 |
|
D-SINF-1030090 |
10 |
10 |
30 |
90 |
|
D-SINF-1030120 |
10 |
10 |
30 |
120 |
|
D-SINF-1040120 |
10 |
10 |
40 |
120 |
|
D-SINF-1220090 |
12 |
12 |
20 |
90 |
|
D-SINF-1220120 |
12 |
12 |
20 |
120 |
|
D-SINF-1230120 |
12 |
12 |
30 |
120 |
|
D-SINF-1220150 |
12 |
12 |
20 |
150 |
|
D-SINF-1220180 |
12 |
12 |
20 |
180 |
