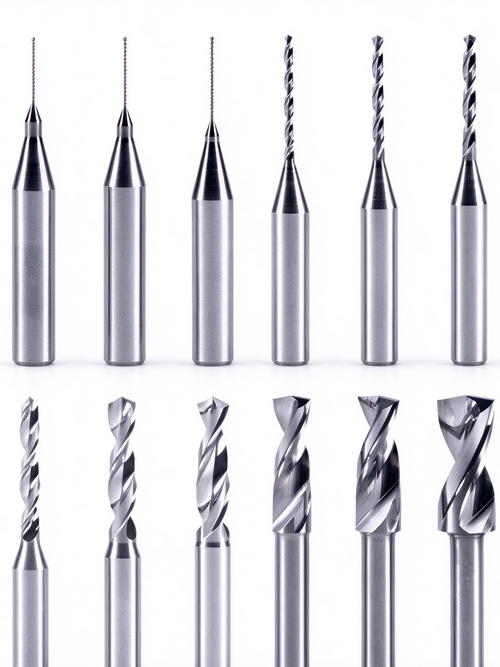

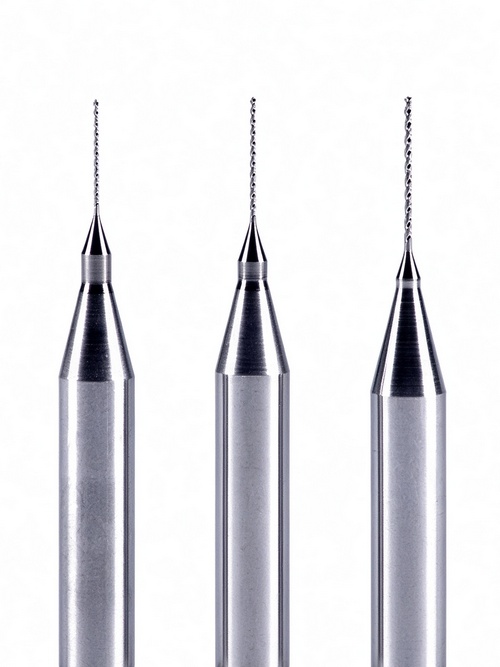

✅ SP Carbide PCB Micro Drill
Our SP Carbide PCB Micro Drill is an industrial cutting tool made of fine-grain tungsten carbide cobalt alloy. It features high hardness, excellent wear resistance, high strength, bending resistance and long service life.
Specifications:
- Cutting diameter: 0.10–6.50mm, with 0.05mm increment
- Shank diameter: 3.175mm, overall length: 38mm
- Shank material: HSS shank for 0.10–3.175mm; tungsten carbide shank for 3.20–6.50mm
Compatible Equipment:
PCB drilling machines, engravers, CNC and other high-precision drilling equipment.
Processing Materials:
Printed circuit boards, bakelite, plastic, amber, ceramic, pearl shell, acrylic, gold, silver, copper, iron and other precision workpieces.
Product Features:
- Large chip removal flute: Low chip resistance, smooth evacuation, less heat buildup and reduced drilling contamination.
- Sharp cutting edges: Manufactured with nano technology and advanced grinding processes to lower cutting force, reduce breakage rate and improve hole wall quality.
- Application-oriented design: Rich size range, core thickness and taper optimized for diverse drilling demands.
- Symmetrical cutting edges: Ensures efficient cutting and prevents hole deviation.
Important Warnings
- These SP Carbide PCB Micro Drills are highly professional tools, only for high-precision industrial equipment under professional operation. Using them on bench drills, hand drills or touching cutting edges may cause breakage. Wear protective gear when handling.
- Tools may pop out if the box is opened improperly.
- Use box openers and safety goggles.
- Never touch the cutting edge to avoid cuts.
