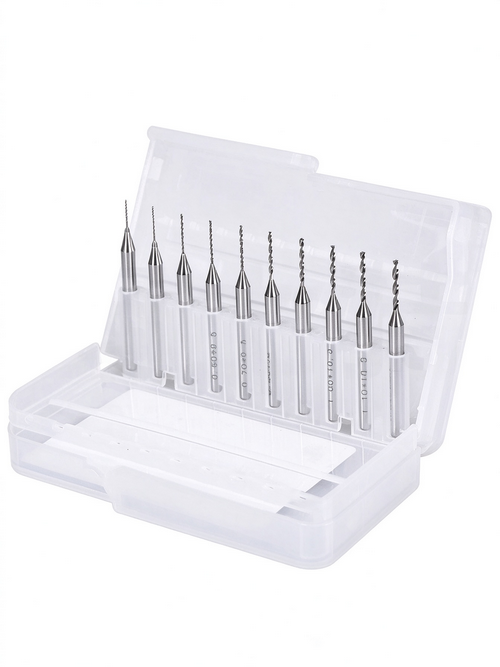

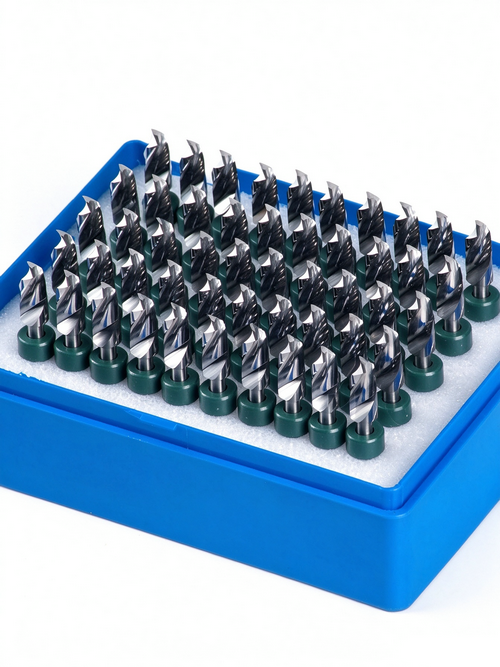

Our Standard Carbide PCB Drills are industrial cutting tools made of fine-grain tungsten carbide cobalt alloy, featuring high hardness, excellent wear resistance, high strength, bending resistance and long service life.
Specifications:
- Cutting diameter: 0.10–6.50mm, with 0.05mm increment.
- Shank diameter: 3.175mm, overall length: 38mm.
- Shank material: HSS shank for 0.10–3.175mm, tungsten carbide shank for 3.20–6.50mm.
- Compatible equipment: PCB drilling machines, engravers, CNC and other high-precision drilling equipment.
- Processing materials: Printed circuit boards, bakelite, plastic, amber, ceramic, pearl shell, acrylic, gold, silver, copper, iron and other precision workpieces.
Product Features
- Large chip removal flute: Low chip resistance, smooth evacuation, less heat buildup and reduced drilling contamination.
- Sharp cutting edges: Manufactured with nano technology and advanced grinding processes to lower cutting force, reduce breakage rate and improve hole wall quality.
- Application-oriented design: Rich size range, core thickness and taper optimized for diverse drilling demands.
- Symmetrical cutting edges: Ensures efficient cutting and prevents hole deviation.
Important Warnings
- These Standard Carbide PCB Drills are highly professional tools, only for high-precision industrial equipment under professional operation. Using them on bench drills, hand drills or touching cutting edges may cause breakage. Wear protective gear when handling.
- Tools may pop out if the box is opened improperly.
- Use box openers and safety goggles.
- Never touch the cutting edge to avoid cuts.
