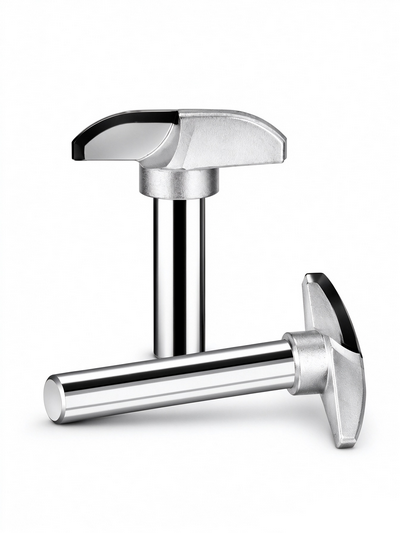

This thin profile PCD round bottom router bit is dedicated for cabinet door core panel machining. It can form step profiles in one pass without additional straight bits, ideal for carving various door panel patterns.
| Item | Details |
|---|---|
| Name | PCD Thin Profile Round Bottom Router Bit |
| Material | PCD (Polycrystalline Diamond) Tip |
| Applicable Materials | MDF, Particle Board, Calcium Silicate Board (For finish without sanding, use multi-flute cutters with ≥3 flutes)MDF, Particle Board, Calcium Silicate Board, Plywood, Eco Board, Compact Laminate Board, Solid Wood (3-flute version) |
| Compatible Machines | CNC Router, Engraving Machine, Overhead Router |
| Recommended Cutting Parameters | Feed rate: 8–12 m/min, Spindle speed: 18000–22000 RPM |
| Application | For cabinet door core panels. Step design, one-step forming, no need for straight bits |
| Features | Carve various decorative patterns on door panels. Stable dimension, no deformation, smooth cutting surface without burrs. High wear resistance, high precision, long service life |
✅ Product Features
- PCD diamond cutting blade, sharp cutting, smooth machining, wear-resistant
- Service life is 20-50 times longer than ordinary cutting tools
- Anti-rust coating on cutter head, anti-corrosion performance
- High-frequency welding structure, chromium steel shank integrated forming, not easy to break
- Fully automatic CNC grinding, high precision, stable dimension, no deformation
- Smooth finished surface, burr-free edge
- Custom service supported
✅ Applicable Materials: MDF, particle board, calcium silicate board, plywood, ecological board, Laminate board, solid wood board
Note: For zero-sand finishing, 3-flute or more cutters are recommended.
✅ Compatible Machines: CNC machine, engraving machine, hanging router
✅ Recommended Machining Parameters
- Feed speed: 8–12 m/min
- Spindle speed: 18000–22000 RPM
✅ Operation Guide
- This woodworking router bit is designed for handheld and bench CNC engraving machines. Not suitable for electric drills or drill presses.
- Suitable for hardwood, softwood and composite boards. Do NOT cut metal, sand or stone materials.
- Use matched high-quality collets. Replace worn, out-of-round or tapered collets to avoid vibration or shank breaking.
- Fully insert the shank into the collet and fasten tightly. Partial clamping will cause shank fracture.
- Stop the machine immediately if runout occurs, re-clamp the tool properly.
- Wear eye and ear protection during operation. Keep clothes and body away from rotating cutter.
✅ Tool Maintenance
- Clean resin and wood chips after use with industrial solvent.
- Apply thin machine oil to prevent rust; clean shank to avoid slipping.
- Do not regrind or modify the cutter arbitrarily, improper grinding will cause edge chipping.
✅ Troubleshooting Reference
- Cutter breakage: Reduce feed rate, shorten tool overhang, check collet and spindle tightness, reduce cutting depth
- Cutting edge chipping: Adopt climb milling, improve workpiece fixing, adjust cutting parameters
- Rapid edge wear: Check matched material, adjust spindle speed and feed speed
- Poor surface finish: Increase spindle speed, replace worn cutter, add cooling, reduce tool overhang

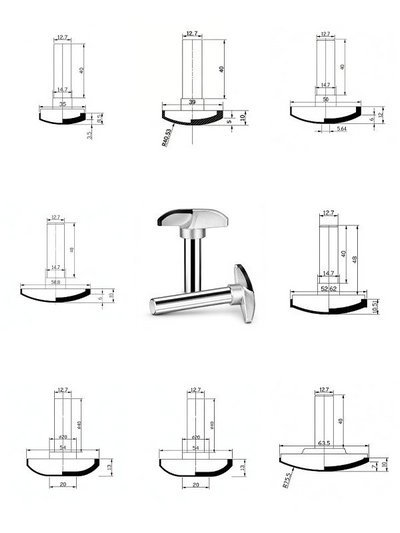

Specification available in various sizes, contact us for more options and customization.
| Problem | Cause | Solution |
|---|---|---|
| Cutter Breakage | Feed rate too fast, spindle speed too low | Reduce feed rate or increase spindle speed; recommended speed ≥20000 RPM for engraving machines |
| Excessive cutting depth | Reduce cutting allowance | |
| Too much tool overhang, insufficient clamping length | Minimize overhang; keep clamping length ≥4× shank diameter | |
| Severe cutting edge wear | Resharpen the cutter or reduce cutting speed | |
| Poor collet accuracy | Replace the collet | |
| Loose spindle or collet | Adjust spindle and collet | |
| Complex cutting geometry with many dead corners | Optimize cutting parameters and programming strategy | |
| Unstable workpiece clamping | Improve fixture to fix workpiece firmly | |
| Poor chip evacuation, heavy chip adhesion | Reduce feed rate, chamfer edge with diamond file to blunt cutting edge | |
| Cutting Edge Chipping | Feed rate too fast, cutting edge too sharp or sharp tip angle | Reduce feed rate, chamfer edge with diamond file to blunt cutting edge |
| Low-precision or improperly installed collet | Replace collet or clear chips inside the collet | |
| Insufficient rigidity of fixture | Lower cutting parameters | |
| Complex workpiece shape with many dead corners | Adjust cutting parameters and programming | |
| Unstable workpiece installation | Improve fixture for stable clamping | |
| Incorrect cutting direction | Use climb milling | |
| Impurities inside workpiece material | Check raw material and adjust cutting speed | |
| Rapid Edge Wear | Spindle speed too high or feed rate too low | Reduce spindle speed or increase feed rate |
| Low precision of spindle or collet | Repair spindle precision or replace collet | |
| Poor chip evacuation, chips sticking on edge | Select proper tool model and improve chip removal | |
| Wrong tool selection for workpiece material | Confirm material and select matched router bit | |
| Improper cutting fluid | Choose suitable cutting fluid | |
| Incorrect cutting direction | Adopt climb milling | |
| Poor Surface Finish | Feed rate too fast or spindle speed too low | Reduce feed rate or raise spindle speed |
| Severe tool wear | Replace the cutter | |
| Low sharpening precision | Use brand-new cutter for finishing operation | |
| Excessive chip accumulation | Clear chips and optimize cooling method | |
| No cooling system | Apply proper cooling system such as water cooling | |
| Tool vibration | Use high-rigidity high-precision collet and shorten tool overhang | |
| Unqualified cutting effect | Choose larger diameter cutter or high-precision engraving machine |
