STECHTOL Name: Left Hand Milling Cutter

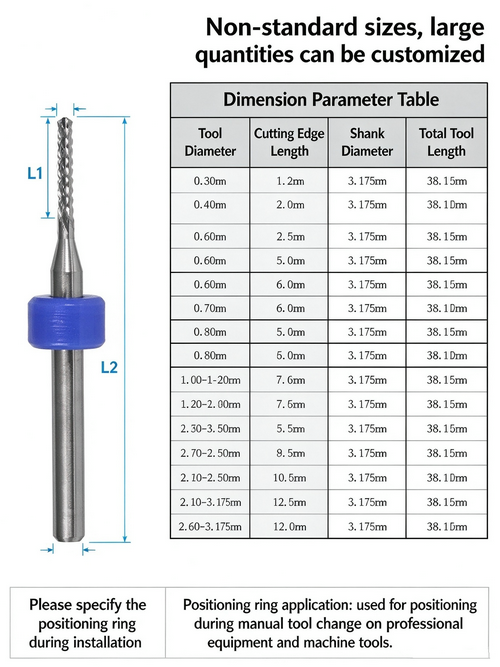

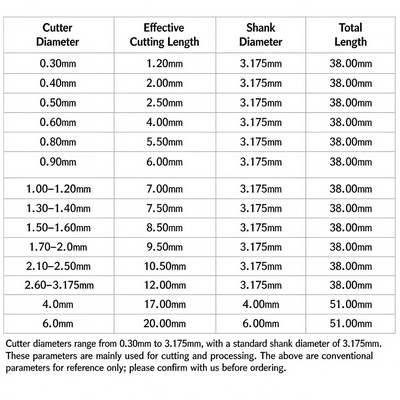

Specifications: Cutting Diameter: 0.80-3.175mm Shank Diameter: 3.175mm Overall Length: 38mm
Material: Imported ultra-fine grain tungsten carbide cobalt alloy (commonly known as cemented carbide or tungsten steel)
Applicable Equipment: SMT Depaneling Machine Processing Range: Depaneling processing for circuit boards, bakelite boards and epoxy boards.
Source factory brand. Non-standard sizes can be customized.

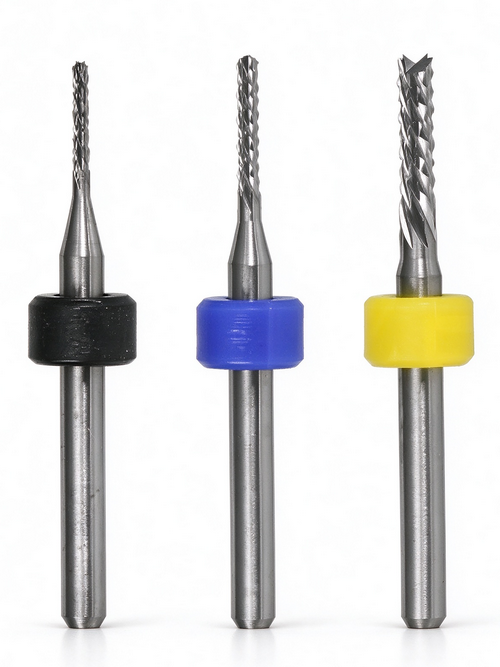

This PCB Depanel Left Hand Carbide Router Bit is an industrial product. Raw material adopts fine grain tungsten carbide cobalt alloy rod, featuring high hardness, high wear resistance, high strength, bending resistance, fracture resistance and long tool service life.
Product Features
- Made of fine grain cemented carbide material, with excellent milling performance to ensure high working efficiency.
- Sufficient bending strength and wear resistance.
- Clean, neat and burr-free milled slots, holes and board edges.
Warnings
- This is a highly specialized tool. It can only be used on high-precision professional equipment within professional operating environment. Using it on non-professional equipment (such as small bench drill, hand drill) or touching cutting edges may cause tool damage or breakage. Wear protective gear when handling tools.
- Tools may jump out if the storage box is opened improperly.
- Use a safe box opener and safety goggles.
- Do not touch the cutting edge to avoid puncture injury.
