Focus brings professionalism | Sharp & Durable, Smooth Cutting Without Burrs
Product Features
- Selected steel shank
- Smooth cutting surface
- Strong wear resistance
- Quality guaranteed
- Not easy to break blade
- Higher processing efficiency

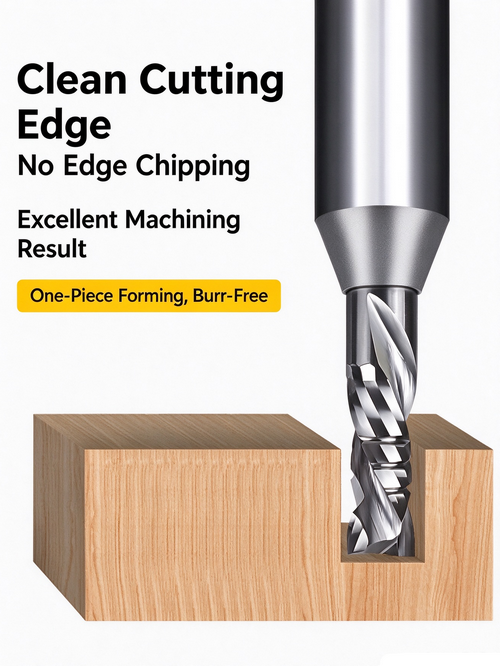

The TCT Composite Spiral Router Bit is available in single and double flute versions. It supports multi-functional machining: circle cutting, grooving, hole drilling, bottom cleaning and panel cutting. It integrates multiple processing functions to simplify your woodworking operation.
Adopt serrated flute design, efficiently crush wood chips for fast cutting. Tungsten carbide cutter tip with high hardness for long service life and superior cutting performance. The cutting surface is smooth, finished in one pass with zero burrs.
Product Information
- Name: TCT Composite Spiral Router Bit, Single / Double Flute
- Material: Shank: high-speed steel; Cutting tip: tungsten carbide. Fixed by high-frequency welding for solid durability
- Application: Panel cutting, cross cutting
- Applicable Materials: Double-sided veneer board, MDF, plywood
- Compatible Machines: Engraving machine, panel cutting machine, CNC machining center
- Recommended Spindle Speed: 18000-24000 RPM
- Recommended Feed Rate: 4-12 m/min (Feed ratio approx.60%, adjust according to actual working condition)
Applicable Materials
- Solid wood
- Hardwood
- Particle board
- MDF, medium density fiberboard
- Wood core board
Compatible Equipment
- CNC engraving machine
- Panel cutting machine
- Overhead router
Usage & Maintenance Guide
1. Cutter Selection
- Use shorter cutting edge whenever possible. Excessively long cutting edge or cutter body causes vibration and deflection, leading to cutter damage and poor cutting quality. Choose cutters with larger shank diameter.
- Use proper collet. Worn, out-of-round or tapered collets cannot provide enough clamping force, which causes vibration or shank breakage.
- If cutter jumps during operation after clamping, stop the machine immediately. Re-clamp repeatedly to ensure full contact between shank and collet before restarting work.
2. Cutter Maintenance
- Good contact between cutter shank and collet. Fully insert shank into collet and tighten firmly. Partial insertion may cause shank fracture and cutter damage.
- Wear eye & ear protective equipment during operation.
- Keep body, clothes and debris away from rotating cutter.
