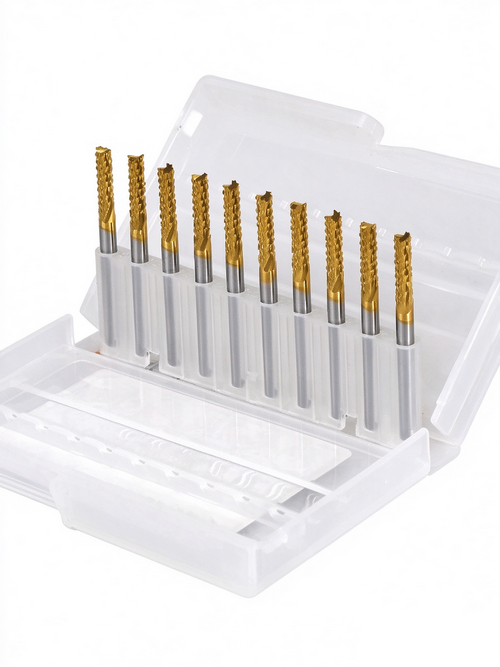

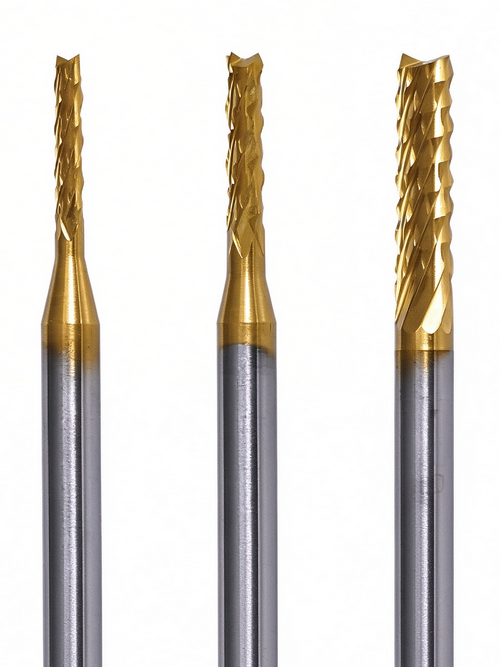

This industrial milling cutter adopts nano TiN coating, golden in color. The TiN coating features high temperature resistance up to 600℃, excellent wear resistance and corrosion resistance.
| Item | Details |
| Product Name | TiN Milling Cutter |
| Specification | Cutting Diameter: 0.30–3.175 mm Shank Diameter: 3.175 mm Overall Length: 38 mm |
| Material | Imported ultra-fine grain tungsten carbide cobalt alloy (also known as cemented carbide / tungsten steel) |
| Applicable Equipment | PCB routing machine, engraving machine, CNC and other high-precision special milling equipment |
| Processing Range | Cutting and forming of circuit boards, bakelite plates, epoxy plates, engineering plastics, jewelry, ceramics, gold, silver, copper, iron and other precision parts |
Specifications
- Cutting Diameter: 0.30–3.175 mm
- Shank Diameter: 3.175 mm
- Overall Length: 38 mm
Material
Imported ultra-fine grain tungsten carbide cobalt alloy (also known as cemented carbide / tungsten steel).
Compatible Equipment
PCB routing machines, engraving machines, CNC and other high-precision milling equipment.
Processing Range
Circuit boards, bakelite plates, epoxy plates, engineering plastics, jewelry, ceramics, gold, silver, copper, iron and other precision parts cutting and forming.
Product Features
- Made of fine-grain cemented carbide, good milling performance for high efficiency machining.
- High bending strength and outstanding wear resistance.
- Clean, neat and burr-free slots, holes and board edges after machining.
Safety Reminders
- This is a professional industrial tool. Only for high-precision professional equipment under professional operation. It may break if used on non-professional equipment such as bench drills or hand drills. Wear protective gear when handling.
- Bits may pop out if the plastic box is opened improperly.
- Use a safe opener and safety goggles.
- Do not touch the cutting edge to avoid cuts.
Custom Service
We are factory brand, non-standard sizes can be customized.
